Design Options
Our most popular design options
-
Design 1 -
Design 2 -
Design 3 -
Design 4 -
Design 5 -
Design 6 -
Design 7 -
Design 8
Product Options
Panels
Products are available in both raised and flat panel option. Product comes full assembled.
-
Raised Panel -
Flat Panel

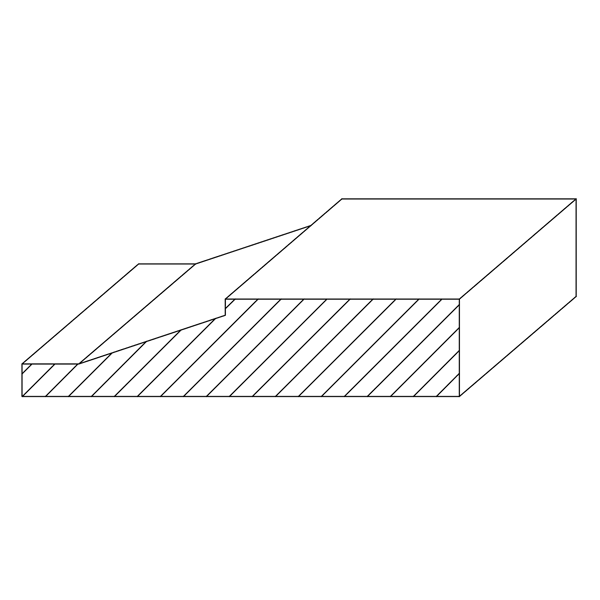

Panel Profiles
Raised panel wainscoting is available in four different panel profiles.
-
Ogee -
Cove -
Classic -
Bead

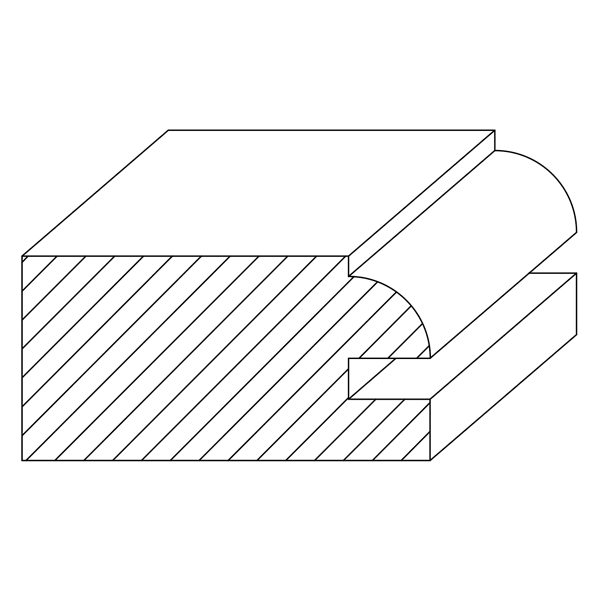

Stile and Rail Frame Profile Options
For Raised and Flat panels.
-
Square -
Ogee -
Classic -
Verdi
Cap Molding Options
-
WS-103 -
WS-102 -
WS-101 -
WS-100
Base Molding Options
-
WS-203 -
WS-202 -
WS-201 -
WS-200
Other Panel Options
- Heights over 42” are a custom option.
- Priming of product is available at additional cost — using a water-borne lacquer suitable for latex or oil topcoat.
- Caps and base moldings are sourced locally — can be ordered through us at additional cost.
- Custom options available to match wainscoting include:
- fireplace surrounds and mantels
- columns and jambs
- ceilings
- cabinet doors
- Arched panels are a custom option, we do not offer a curved wall option.
- We also offer moisture resistant and exterior grade product options.
Finished Cap & Base Molding Options
- We offer finished CAP and finished BASE molding options
- Select one CAP & BASE molding as a combination
- Moldings will be delivered rough cut to wall lengths
- All moldings milled from finger-jointed pine, and comes FULLY PRIMED
- Price includes delivery to customer site, with the custom panel system
- Moldings ONLY available when purchasing our custom wainscoting
Product Specifications
Construction and Delivery Specifications
- We shop mill and assemble a line of fully custom paneled wainscoting products.
- Each Panel, Stile and Rail is individually milled and assembled.
- Each element is made to custom client measurements.
- Construction is tongue and groove, hidden pocket screw and glued assembly.
- Product is shipped fully assembled and ready for installation.
- For walls over 8’ in length, product is shipped in sections with appropriate joinery so there will be no visible joints.
- All Paneling products are manufactured out of lightweight Tru-Pan MDF.
- Standard Raised Panel products are made of 3/4″ materials.
- Standard Flat Panel product – stiles and rails are 3/4″, panels are 1/4″.
- Other MDF materials can be specified at additional cost.
- All products come paint-grade MDF.
- Any height up to 42″ is Standard, priced by the Linear Foot for both Straight and Angled Panels.
Specifications for 1″ MDF Materials
- Available at additional cost.
- Stiles and Rails are made of
- 1” MDF.
- Raised Panel
- Made of 3/4” MDF.
- Panel Profile options, same as 3/4” panel construction.
- Flat Panel
- Made of 1/2” MDF
